1 x Matek F405-WMN Wing Flight Controller - Fixed Wing Alita

1 x Matek F405-WMN Wing Flight Controller - Fixed Wing Alita

$151698 $158173

Sin Stock
Consultar

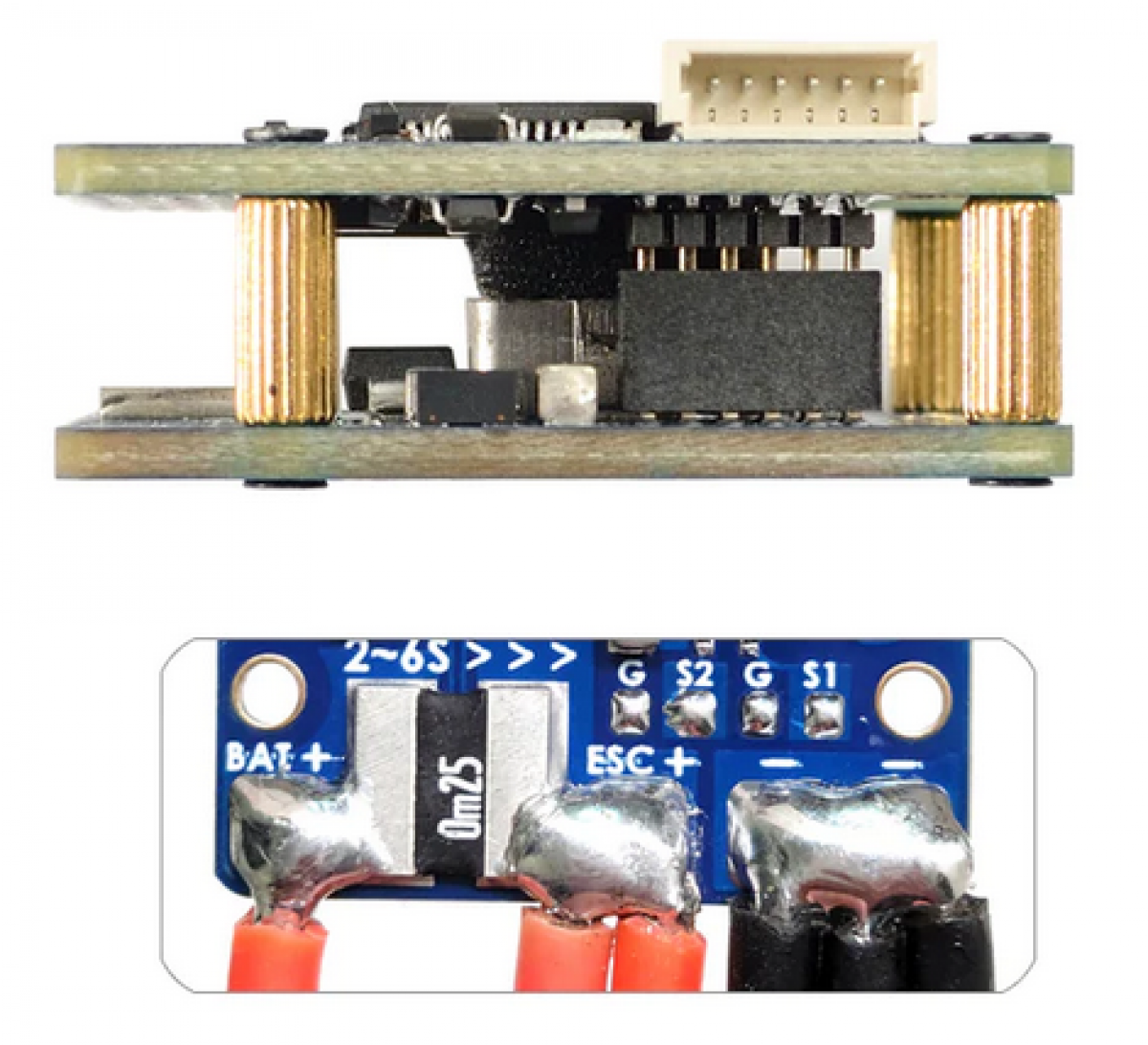

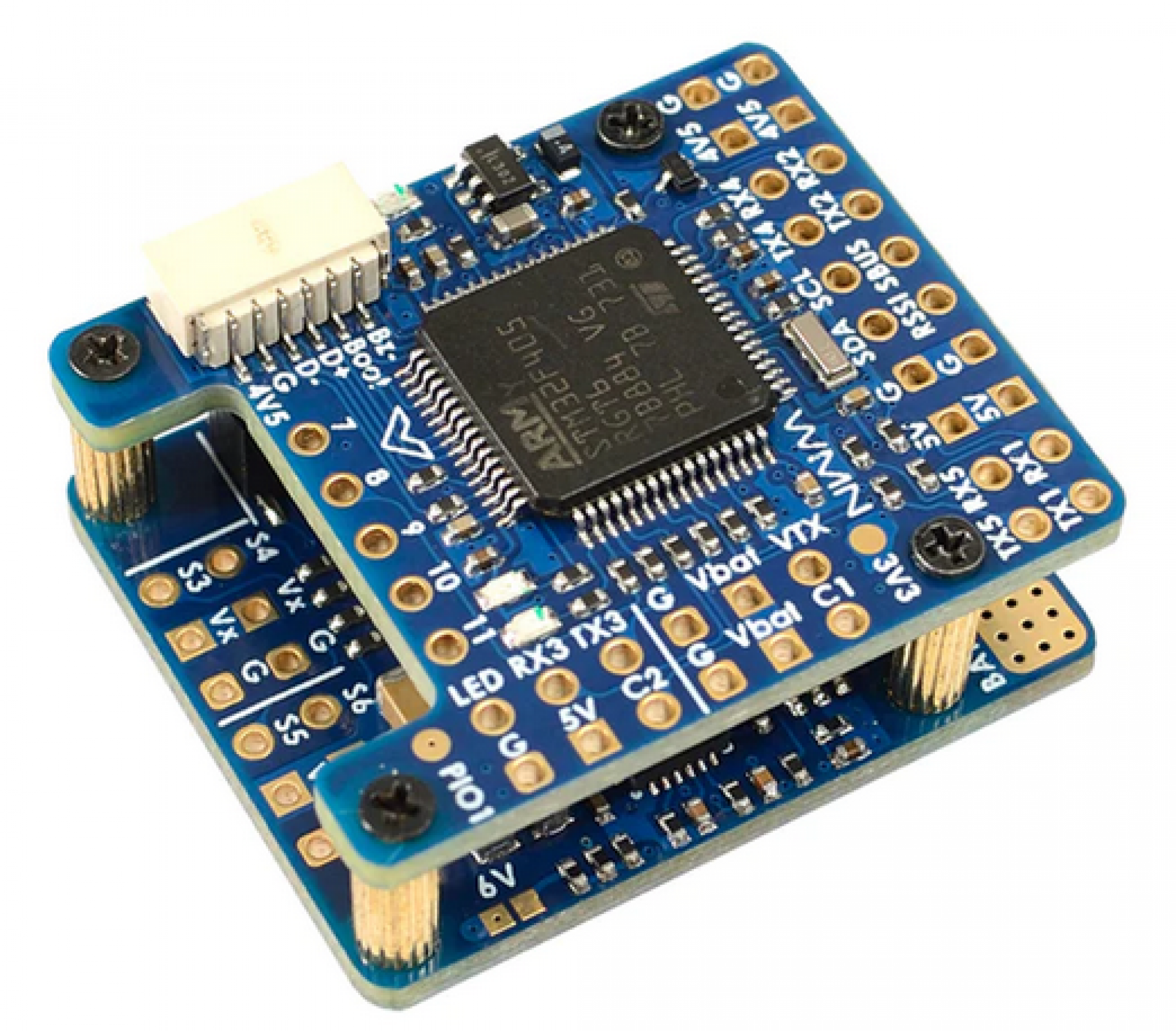

The Matek F405-WME is a fixed wing flight controller compatible with Ardupilot, and iNav. Check out all our Flight Controllers and the rest of our Matek Products! Flight Controller Specifications MCU: STM32F405RGT6, 168MHz , 1MB Flash IMU: ICM42688-P Baro: SPL06-001 OSD: AT7456E Blackbox: 16M Flash 5x UARTs, 1x Softserial_Tx option(INAV) 12x PWM outputs 1x I2C 3x ADC (VBAT, Current, RSSI) 1x spare PINIO USB/Beep Extender with Type-C(USB2.0) Built in inverter on UART2-RX for SBUS input Switchable Dual Camera Inputs Flight Controller Firmware: ArduPilot: MatekF405-TE INAV: MATEKF405TE (INAV 5.0 or newer) PDB Specifications: 6~30V DC IN (2~6S LiPo) 132A Current Sense (INAV Scale 250, ArduPilot 40A/V) PDB/Current sense resistor: 90A continuous, 132A burst. BEC 5V 1.5A for FC & Peripherals BEC Vx 5A for servos, 5V/ 6V option Vbat for VTX and camera LDO 3.3V 200mA Battery Voltage Sensor: 1k:20k Physical Specifications: Dimensions: 31 x 26 x 16.5 mm Mounting: 22 x 22mm, Φ2mm Weight: 10g Includes 1x Matek F405-WMN Wing Flight Controller 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender. Dupont 2.54 pins (Board is shipped unsoldered)
