1 x Receptor HappyModel ExpressLRS ELRS EPW6 TCXO 2.4GHz PWM Fixed wing
1 x Receptor HappyModel ExpressLRS ELRS EPW6 TCXO 2.4GHz Fixed wing
$35150
Sin Stock
Consultar
Specifications:
Item: Happymodel EPW6 TCXO 2.4GHz pwm receiver
ESP8285, SX1280/1281
Antenna connector: IPEX MHF 1/U.FL

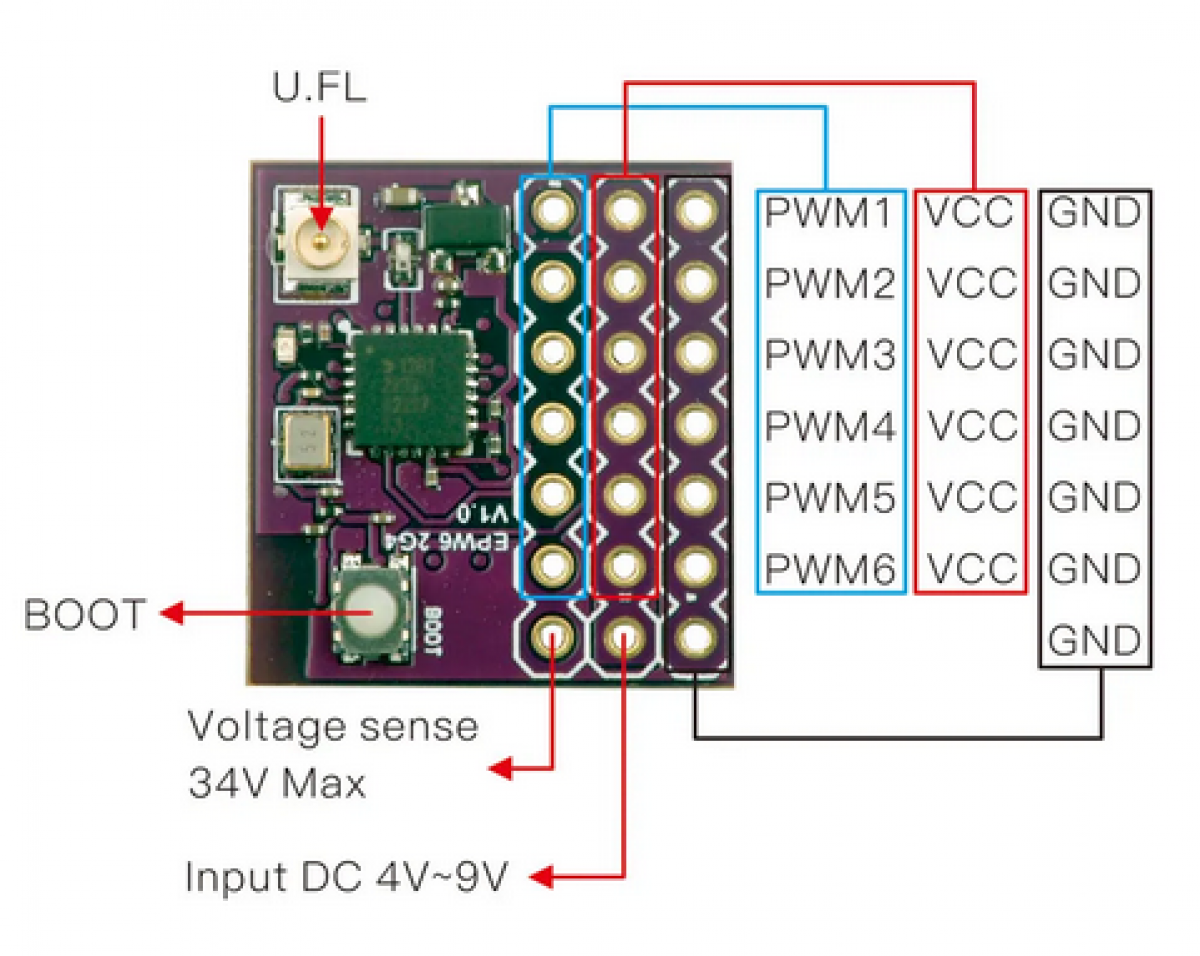

6x PWM outputs
RF Frequency: 2.4GHz (2400~2480MHz)
Telemetry power: 12dbm
Receiver protocol: PWM or CRSF
Input voltage: +5v~8.4v
PCB size: 19mm x 17.5mm
Weight: 1.49g / antenna
Firmware:
Target option1: Generic ESP8285 6xPWM 2.4Ghz RX
PWM receiver via 1~6 PWM outputs
Target option2:HappyModel_EP_2400_RX
CRSF Serial receiver via TX and RX
Firmware update via WIFI

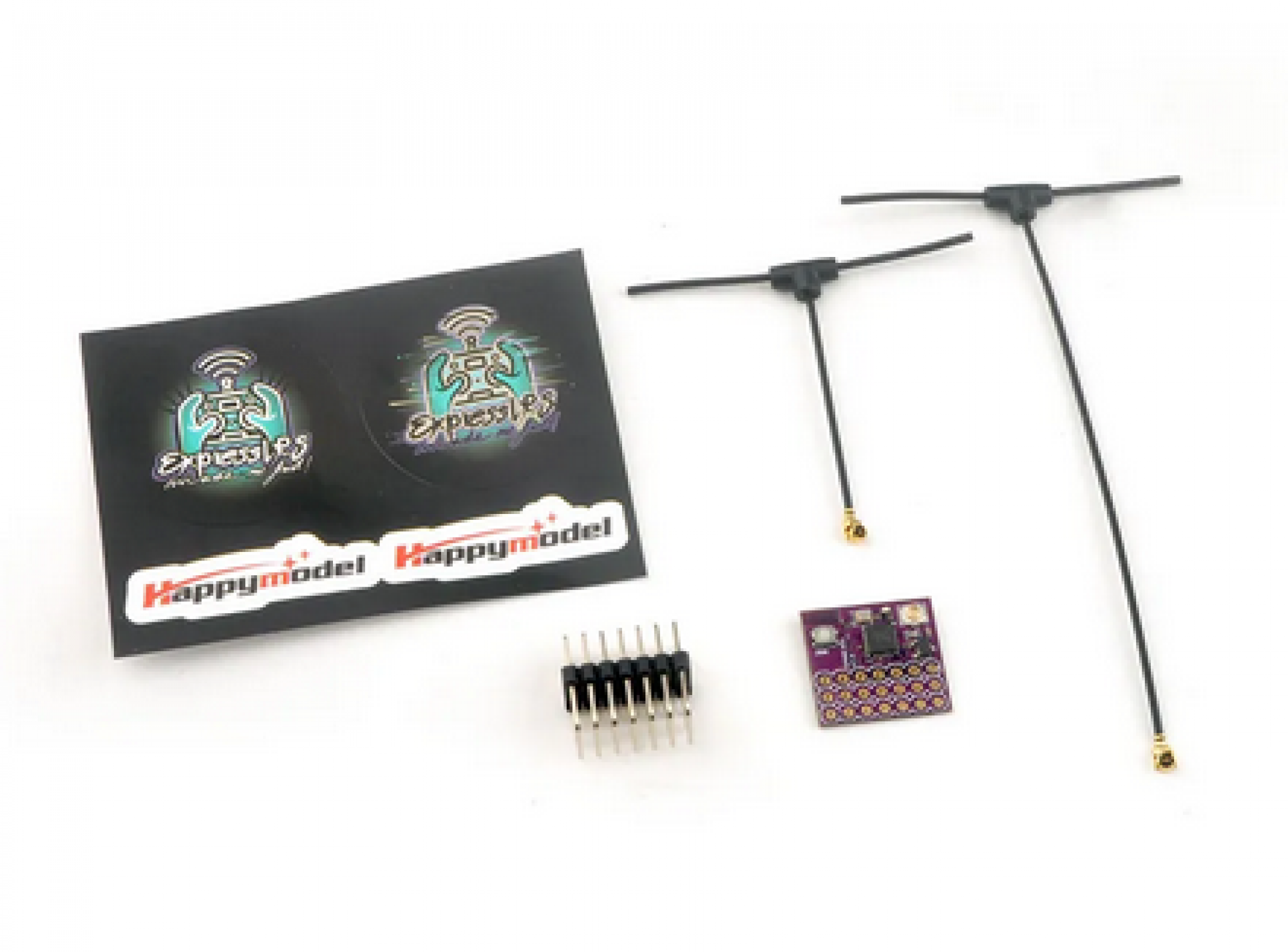

Package Included:
1 x Happymodel EPW6 TCXO 2.4GHz PWM Receiver
2 x 2.4GHz antenna
3 x 7pin 2.54mm
