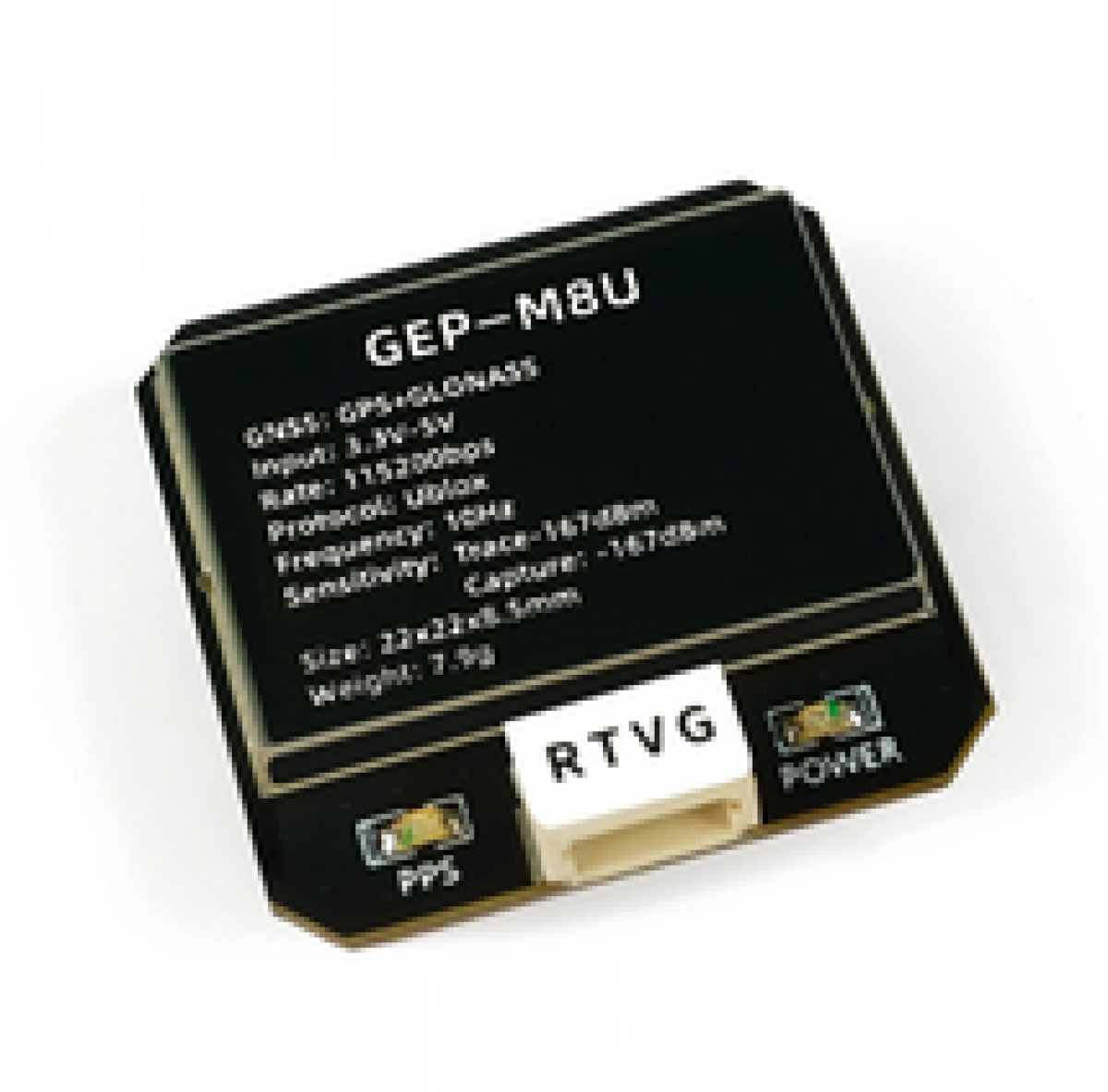

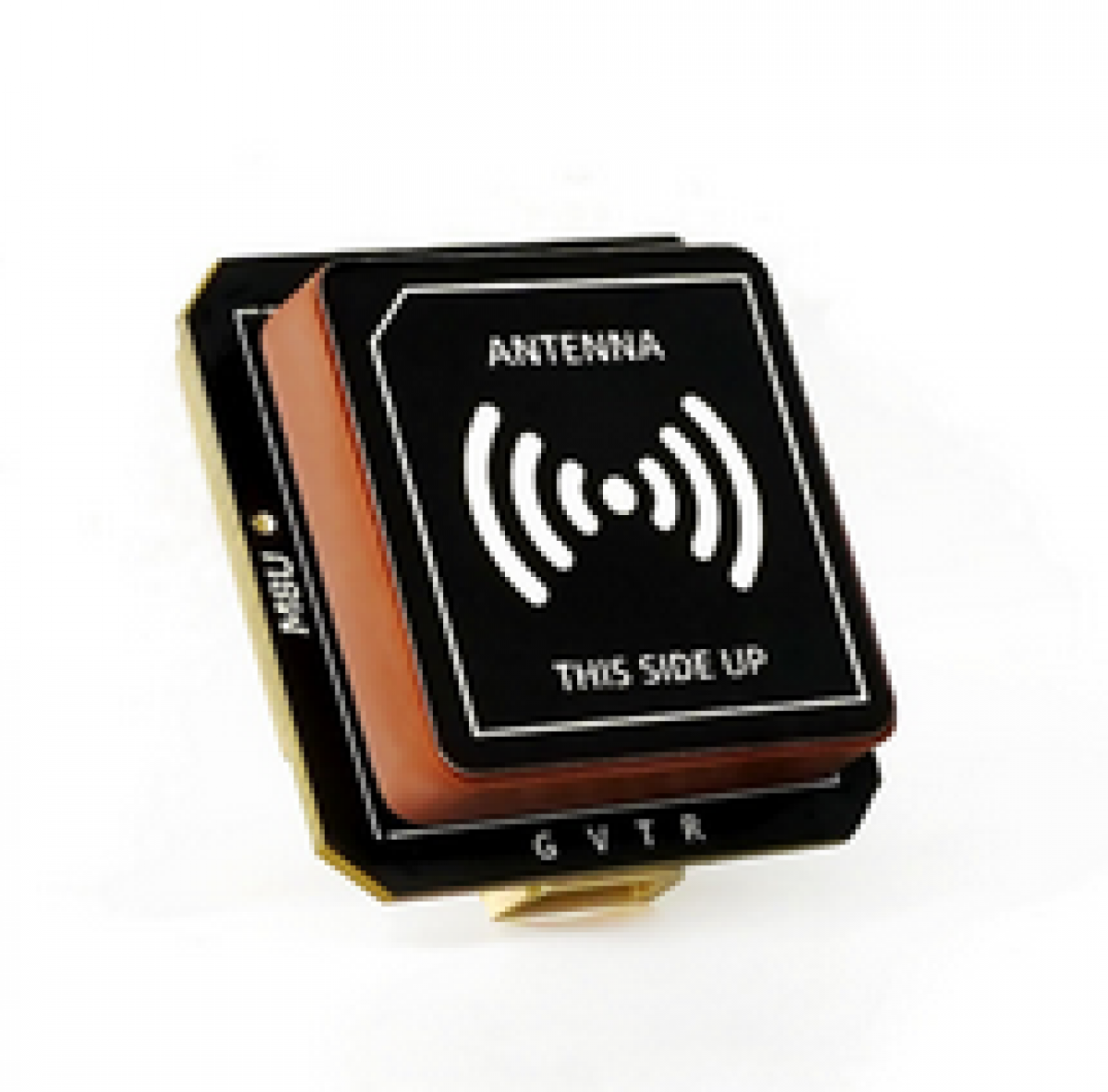

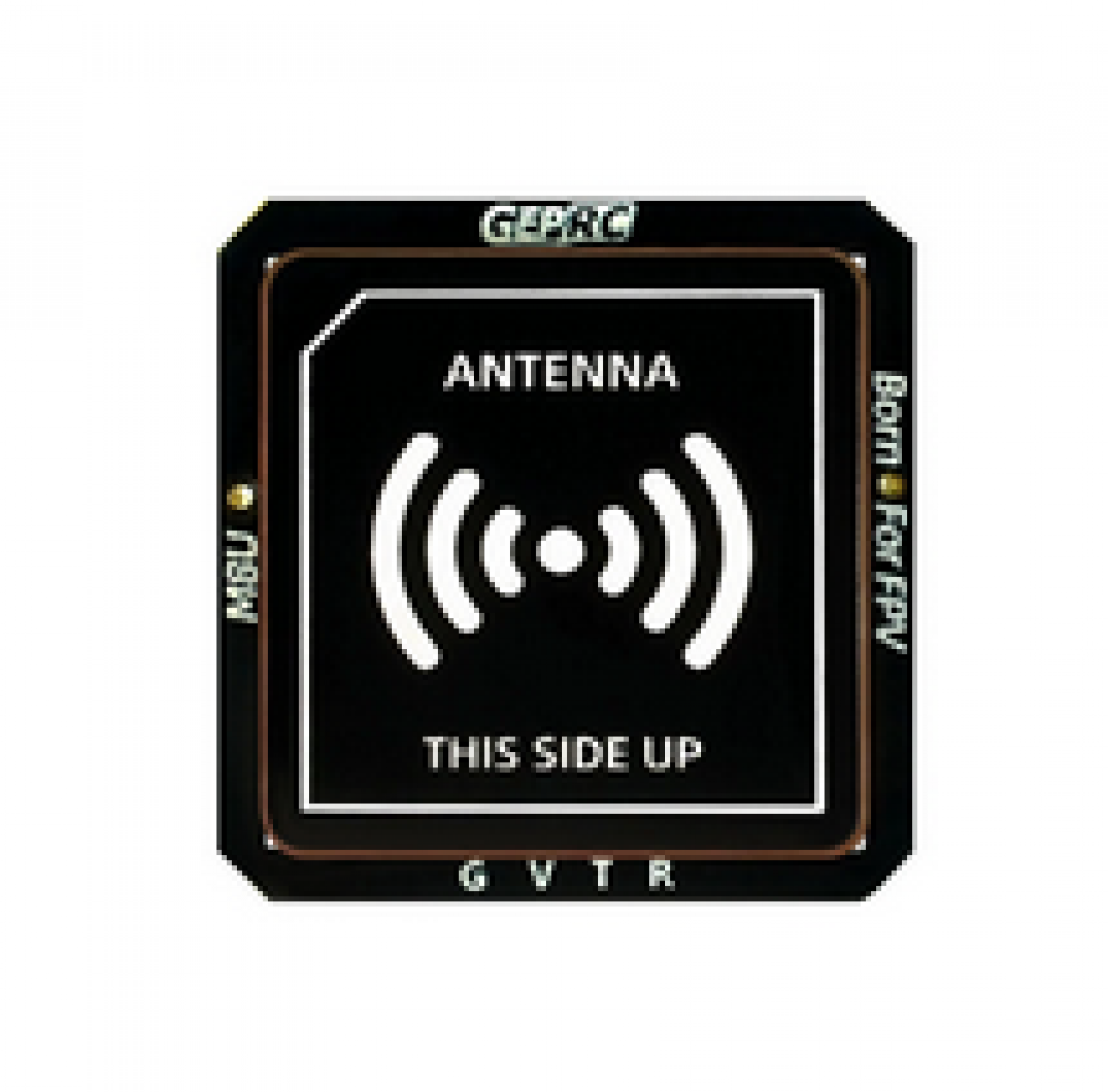

1 x GepRC GPS M8U Antenna Module-GPS+BDS

1 x GepRC GPS M8U Antenna Module-GPS+BDS

$40700

Sin Stock
Consultar

pecifications: Model: GEP-M8U GPS module Input Voltage: 3.3V-5V Receiving Format: GPS, BDS Channel: 72ch Compass: None Baud Rate: 115200bps Output Connector: SH1.0-4P Communication Protocol: UART Output Protocol: UBLOX Output Frequency: 10Hz Speed Accuracy: 0.05 m / s Horizontal positioning accuracy: horizontal <2.5M, SBAS < 2.0M Timing Accuracy: 30 ns Receiving Sensitivity: Trace -162dBm, Capture-160dBm Dynamic Characteristics : Max Height: 50000m, Max Speed: 500m/s Max Acceleration: 4G Size: 22mm x 22mm x 8mm Weight: 7.9g Feature: Fast positioning speed Stable connection Unique appearance design Small size and light weight SH1.0-4Pin terminal design, no soldering required. On-board PPS positioning and power indicator, easy to use. Includes: 1 x GEP-M8U GPS module 1 x SH1.0-4Pin terminal cable
