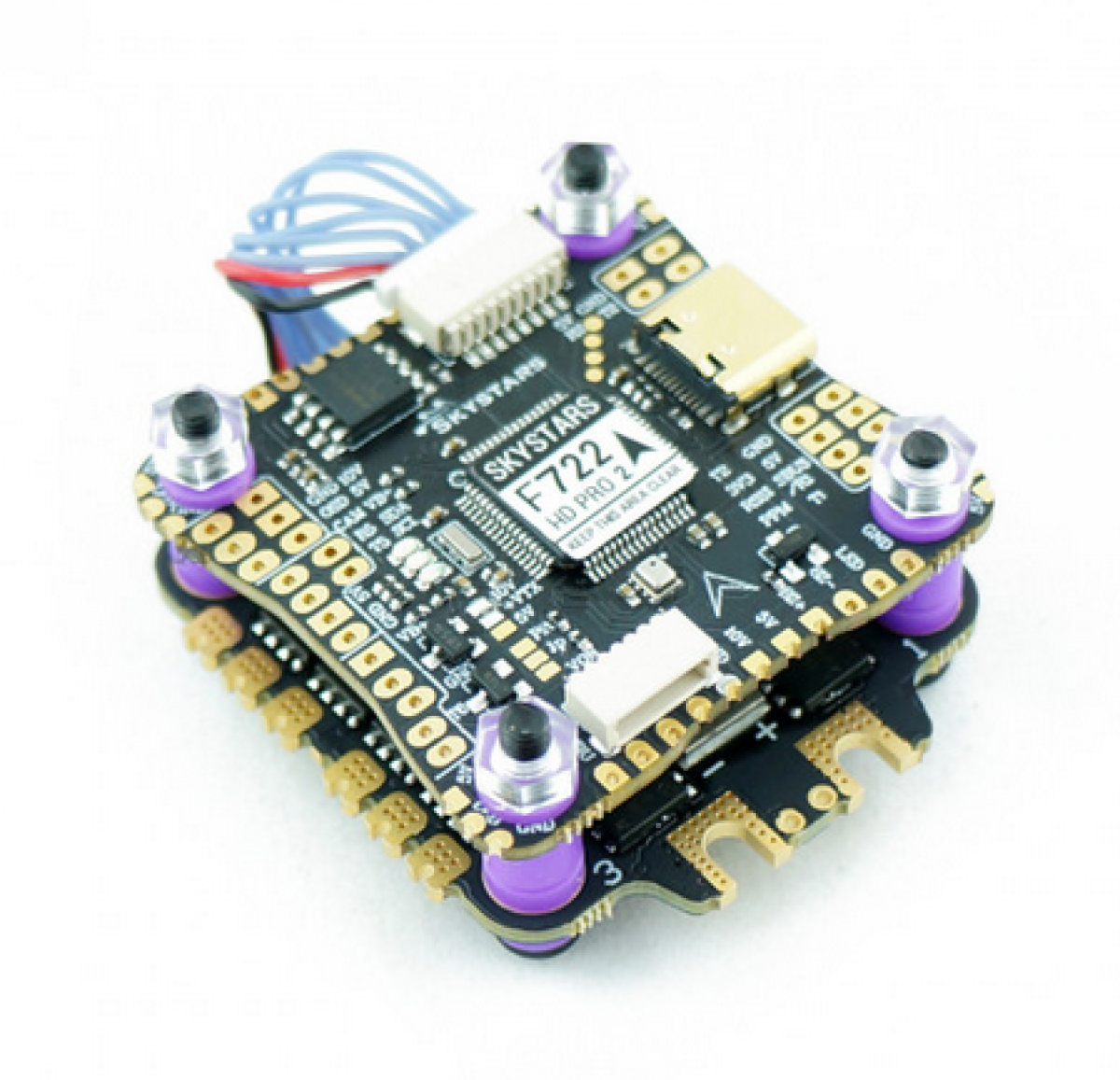

1 x Stack Skystars F722 HD PRO3+KO60 Blheli_32 Fly Stack 30x30
1 x Stack Skystars F722 HD PRO3+KO60 Blheli_32 Fly Stack 30x30
$233098
$277497 Sin Stock
Consultar
Specifications
Mount: 30.5mm x 30.5mm
Supports 3-6S
ESC weight: 12g
ESC onboard current sensor.
Continuous current: 60A
Peak current [5 seconds]: 65A
Drive signal: Dshot300-1200 / Proshot1000 / Oneshot / Multishot / PWM
MCU: STM32F051 Operation frequency: 48MHz
Firmware: BLHeli_32
BEC: No

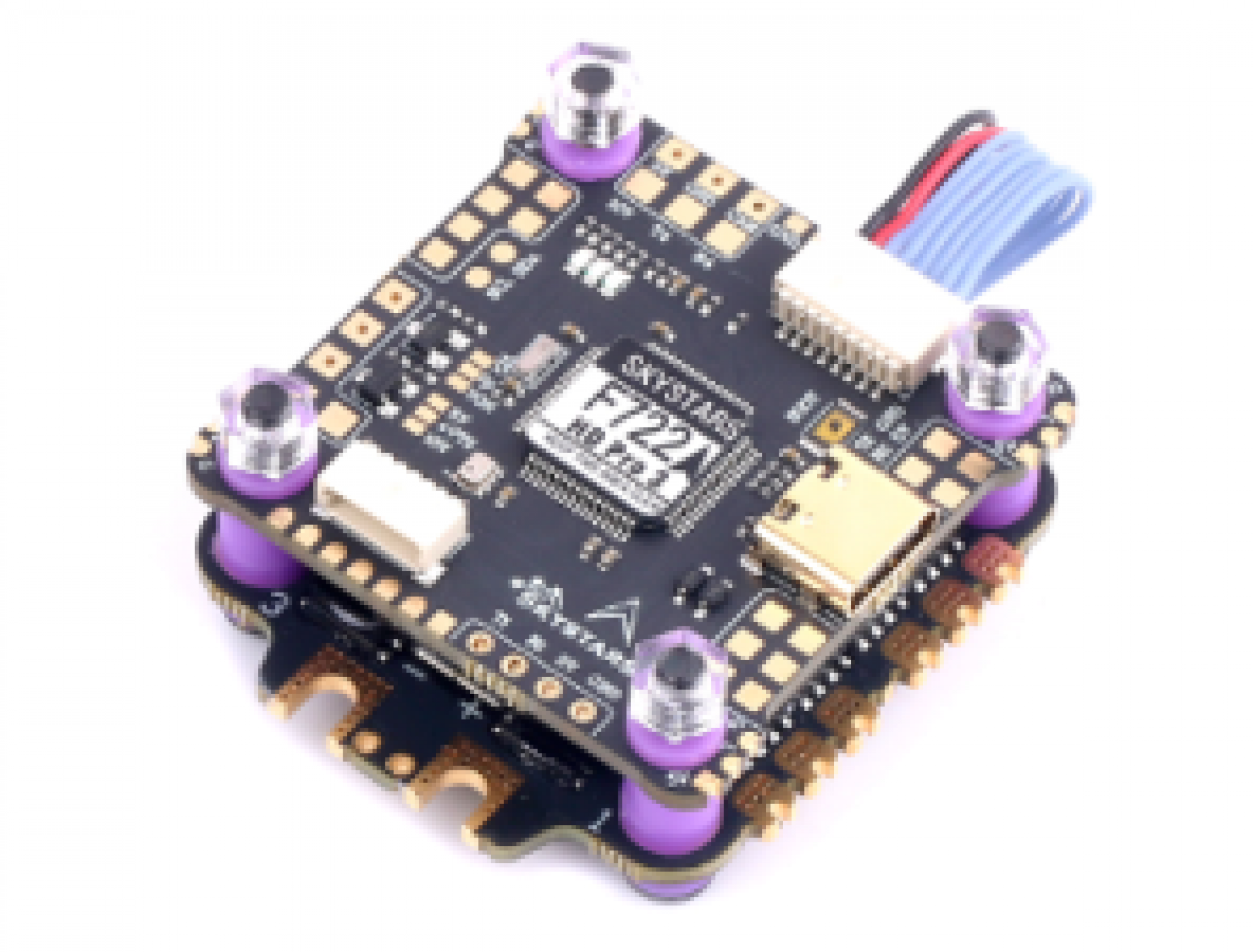

SkyStars F7 F722 Flight Controller
Brand Name: Skystars
Model: F722 HD
Item Name: F7 OSD 3-6S Flight Controller
MCU: STM32F722RGT6 216MHz
IMU: MPU6000 (SPI)
OSD: Betaflight OSD & DJI HD OSD (UART6)
BEC Output: 5V 3A & 10V 3A
Input Voltage: 3-6S Lipo
Blackbox: 8MB
Firmware: SKYSTARS F7HD
6 hardware UARTS (UART1,2,3,4,6)
Dimensions: 38.5x40x6.2mm
Mounting Holes: Standard 30.5mm square to the center of holes
Weight: 6.2g
Wiring Diagram
Includes
1 x SkyStars F7 F722 Flight Controller
1 x SkyStars RC KO60 60A BLHELI_32 4-in-1 30X30 ESC
