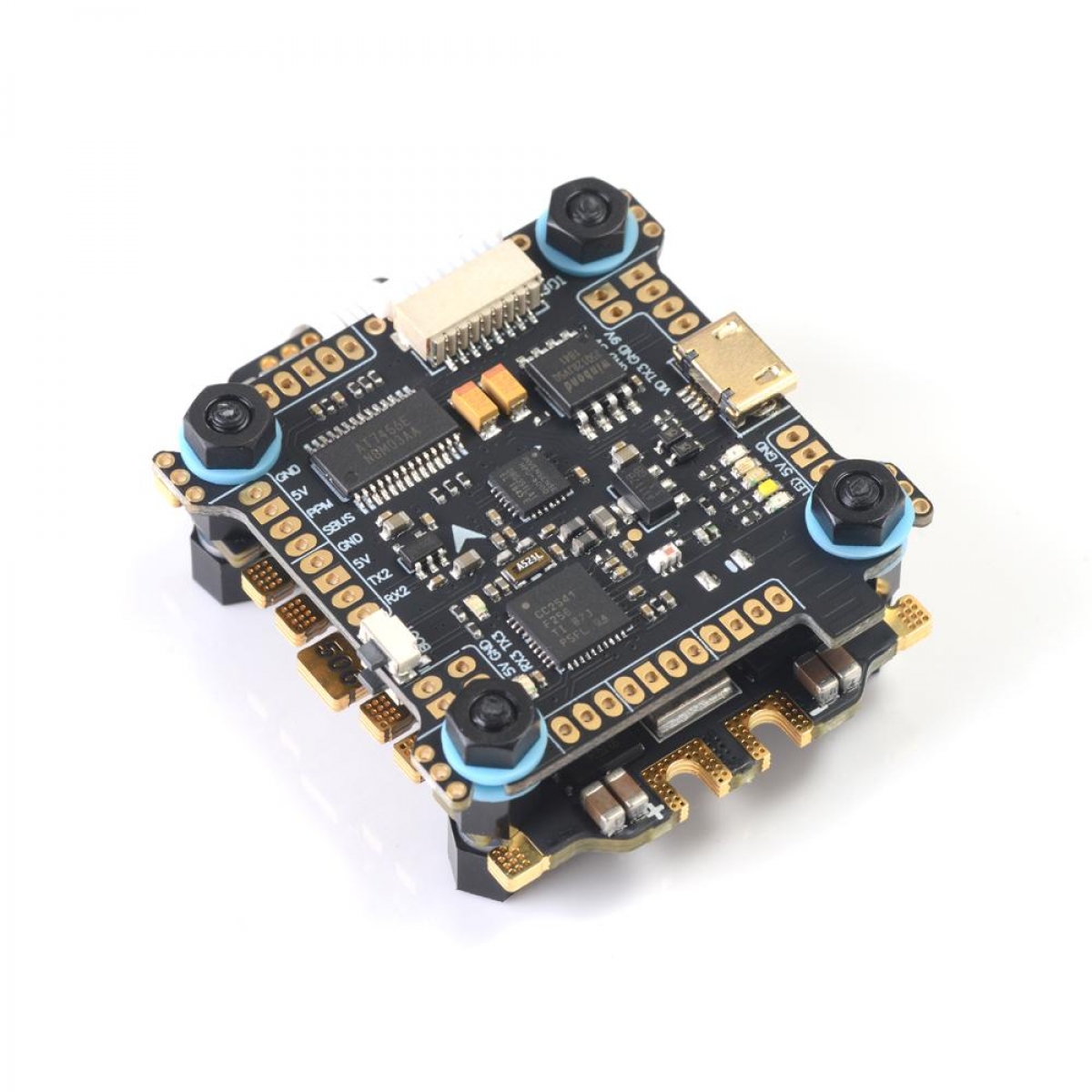

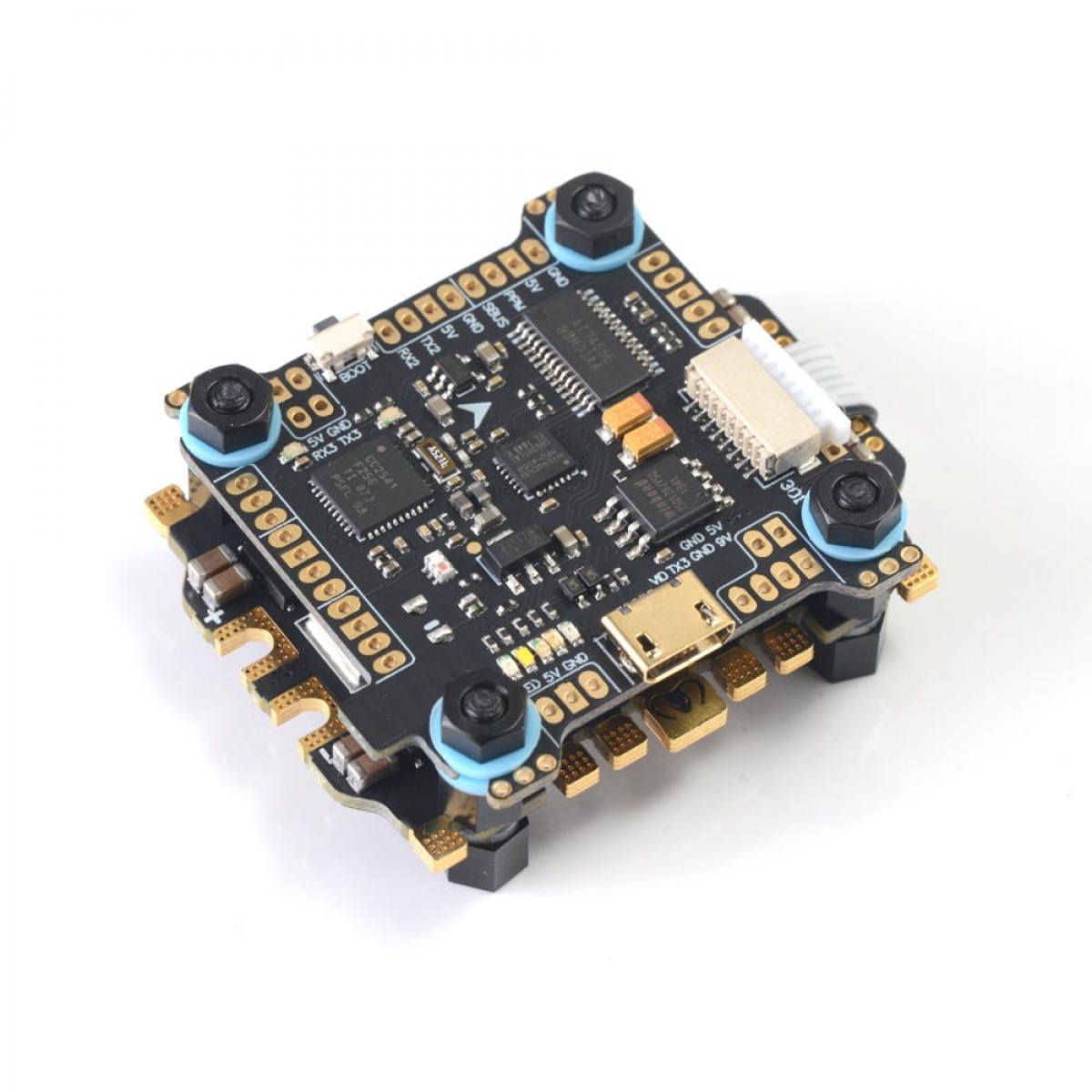

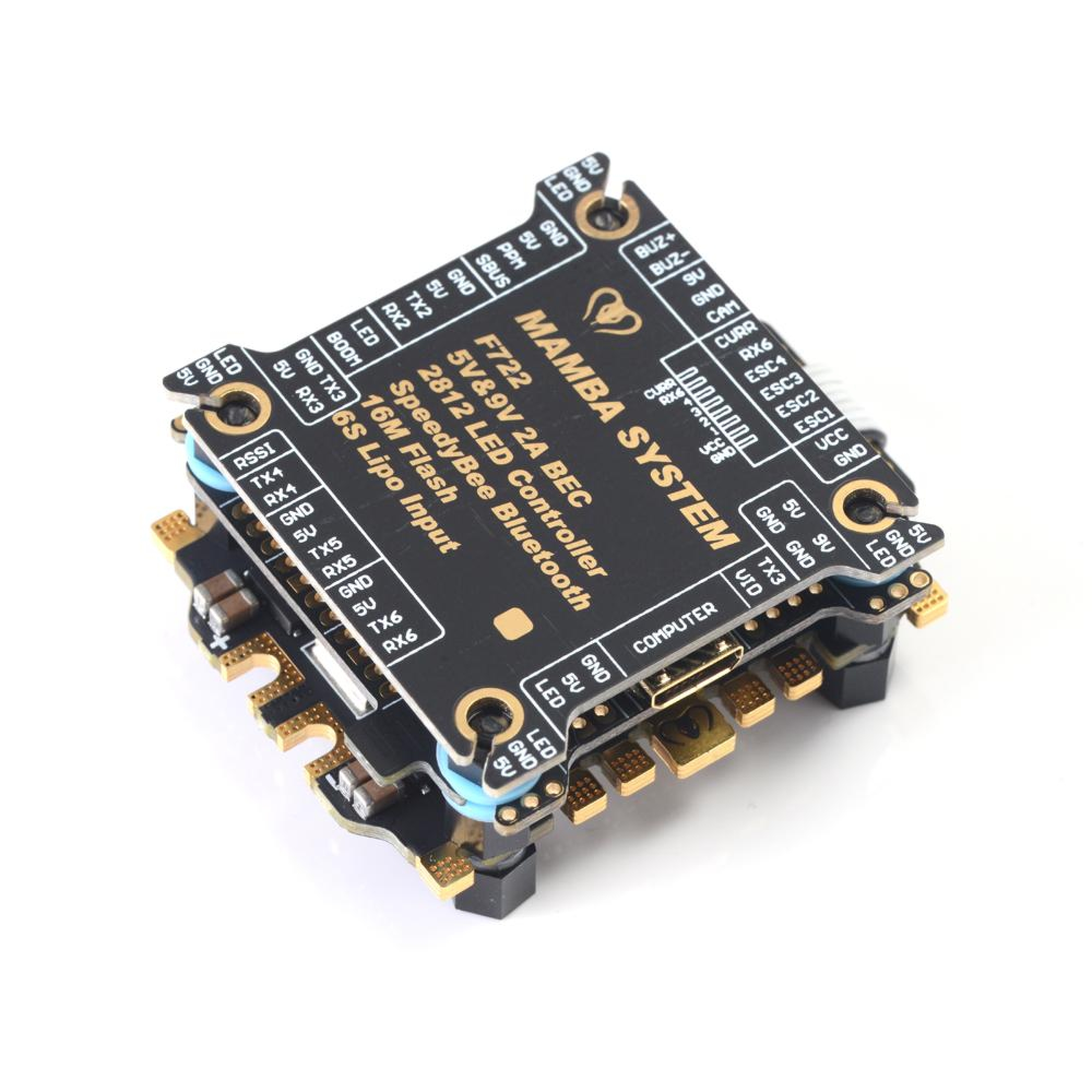

1 x Mamba Stack F722S+50A Blheli32 Dshot1200

F7 + 50A Blheli32 Dshot1200 With Speedybee

$201648

Sin Stock
Consultar

FC Specifications

MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Blacbox: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX6
LED: Blue&Orange for FC Status,,Green 9V,White 5V,Red 3.3V

Controller: 4 Set 2812 LED

Bluetooth: SpeedyBee APP

Smartaudio: Yes
RSSI: Yes
Buzz: Yes

Input: 3~6S Lipo (12.6~25V)
VTS Protection: Yes
BEC: 5V 2A & 9V 2A (Max 3A)

Diagram link

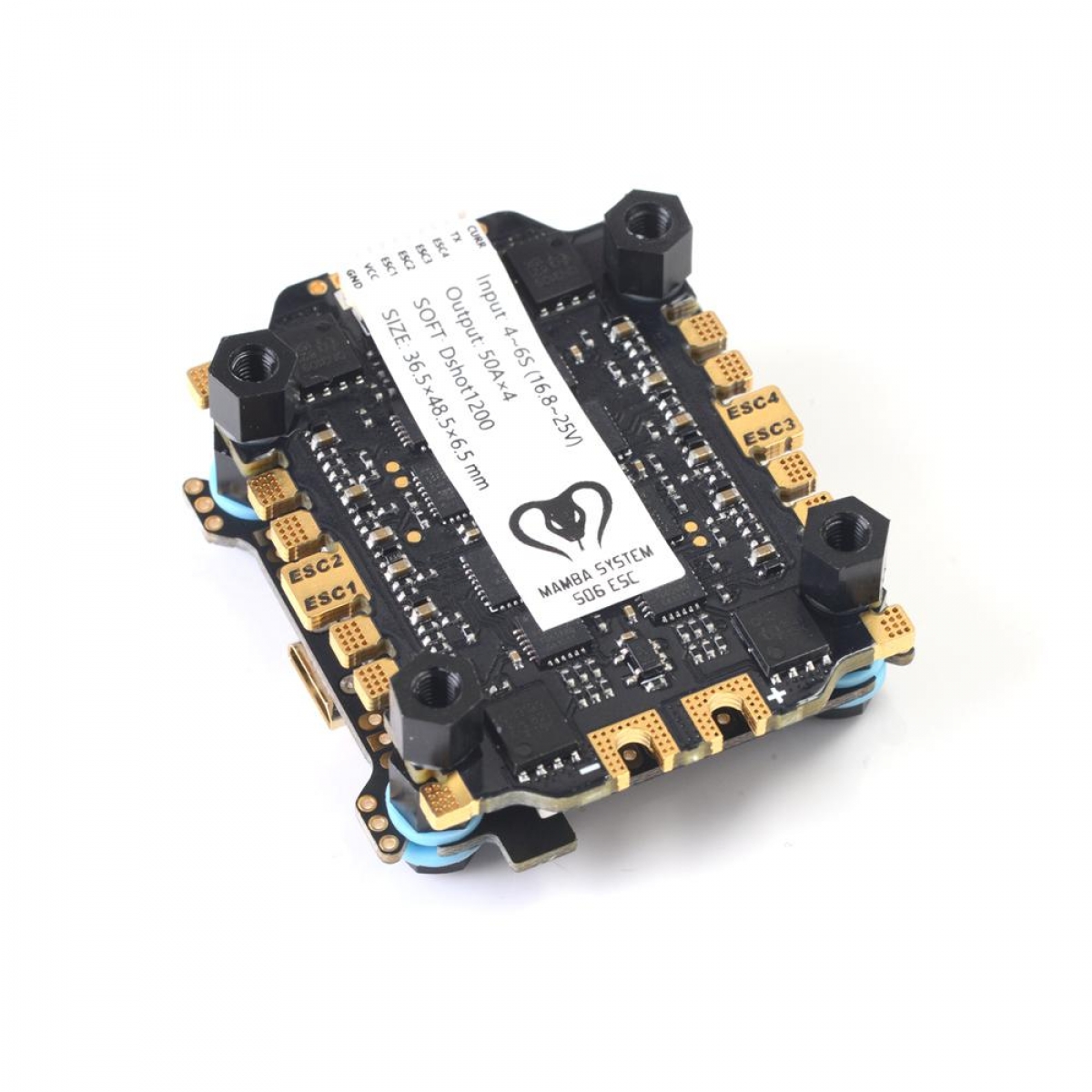

ESC Specifications

INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)

CONTINUE CURRENT: 50A×4

BURST CURRENT: 55A (10S)

BEC: NO

SOFT: Dshot300/600/1200

MOUNTING: 30.5mm/M3

Supply : Panasonic High Frequency 470uF/35V



FC Firmware
BetaFlight
Target: MAMBA F722 （uploading...）
Download Link

Mounting: 30.5×30.5mm,Φ3
Dimensions:
Weight: 22g


Including
1×FC MAMBA F722S STACK
