ATENCION!!!! Dice EU pero es compatible con NON-EU solo hay que actualizar el firmware!!!

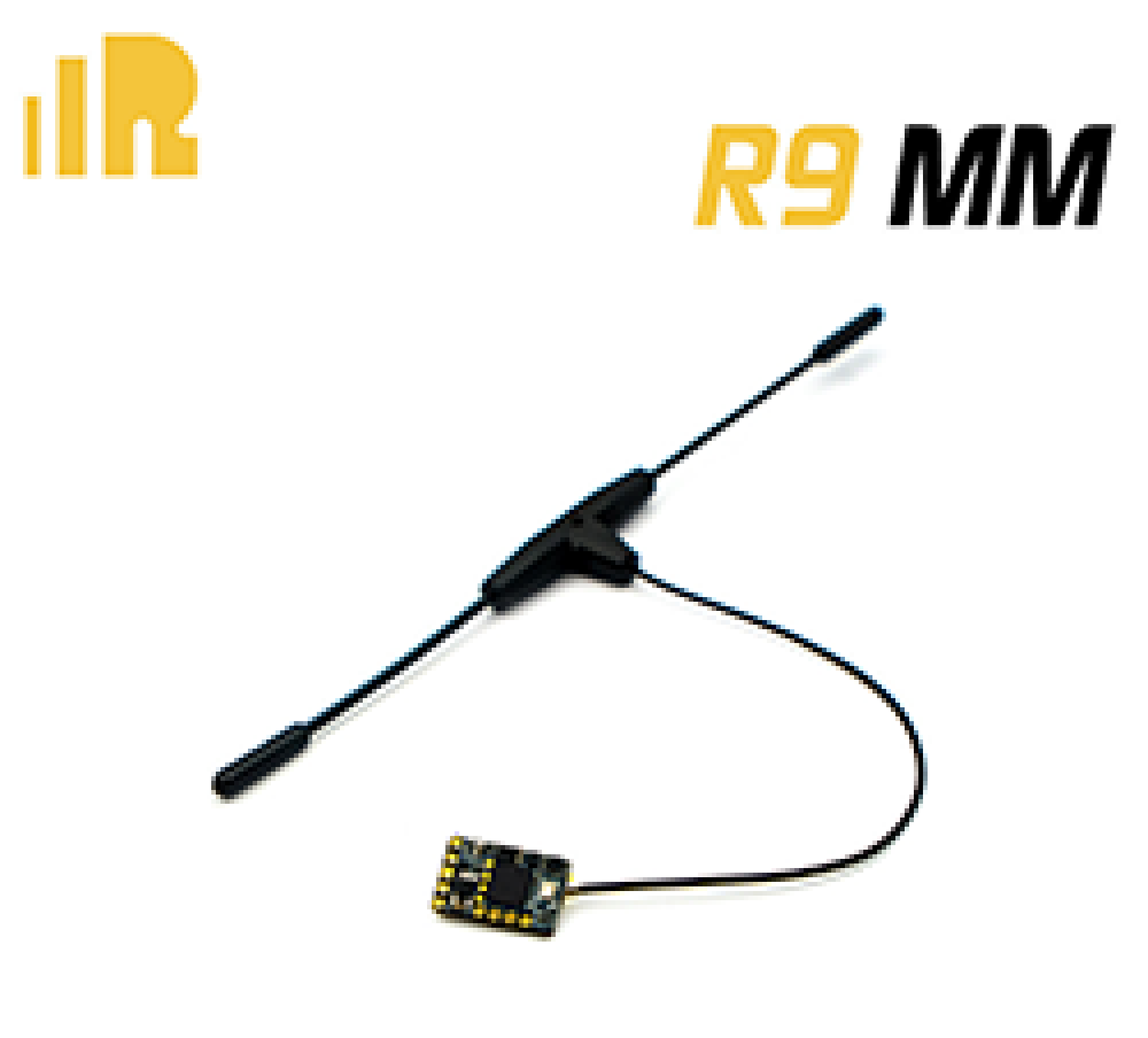

The FrSky R9 MM is the latest 900MHz mini receiver in the long range series. It carries on most of the features from the previous R9 Mini receiver, like it’s super low latency, high precision performance in an extremely compact design. A new feature incorporating an inverted S.Port output makes it compatible with more devices.
SPECIFICATIONS
- Dimension: 16*10*2.8mm (L×W×H)
- Weight: 0.7g (without antenna)
- Number of Channels:
Non-EU Version: 4/16CH (Telemetry)
EU Version: 4/8CH (Telemetry) / 4/16CH (Telemetry) / 4/16CH (No Telemetry)
- Operating Voltage Range: DC 3.5V – 10V
- Operating Current: 100mA@5V
- Operating Range: Up to 10km or above
- Compatibility: R9M and R9M Lite
FEATURES
- 915MHz (Non-EU Version)/ 868MHz(EU Version)
- Mini size and super light-weight
- Inverted S.Port enabled
- S.Port enabled and support telemetry data transmission
(Support F.Port, download firmware to support the function)
- Low latency and high precision
- With RSSI output in SBUS
- Battery voltage detection supported
- Detachable Ipex connector antenna
Including
Download FrSky R9 MM Relevant Files
