SPECIFICATIONS

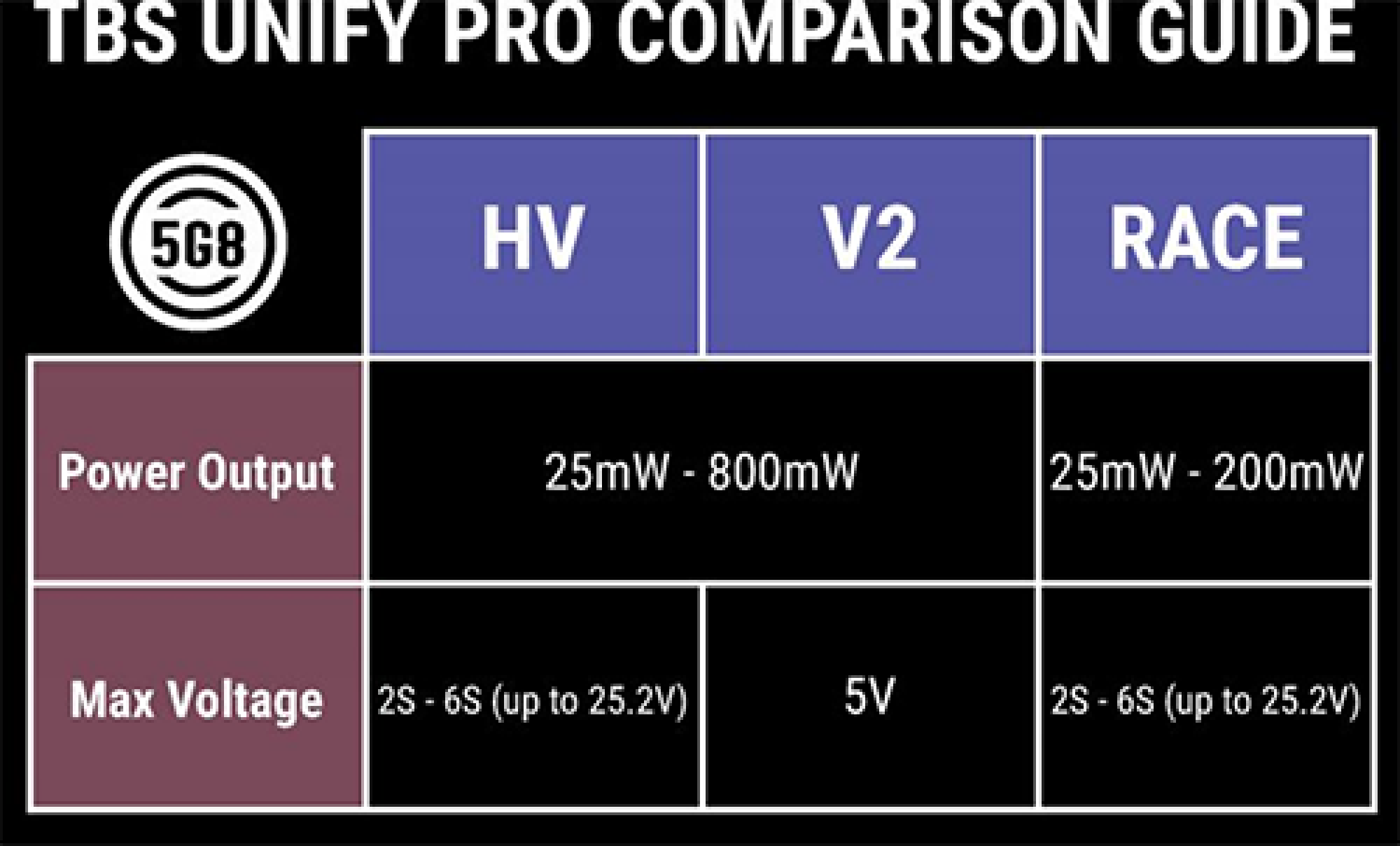

Operating Voltage: 2S - 6S
Supply current: up to 600mA
Operating Temperature: watch for normal airflow
Audio carrier Frequency: 6.5 MHz
Video Input Impedance: 75 Ohm

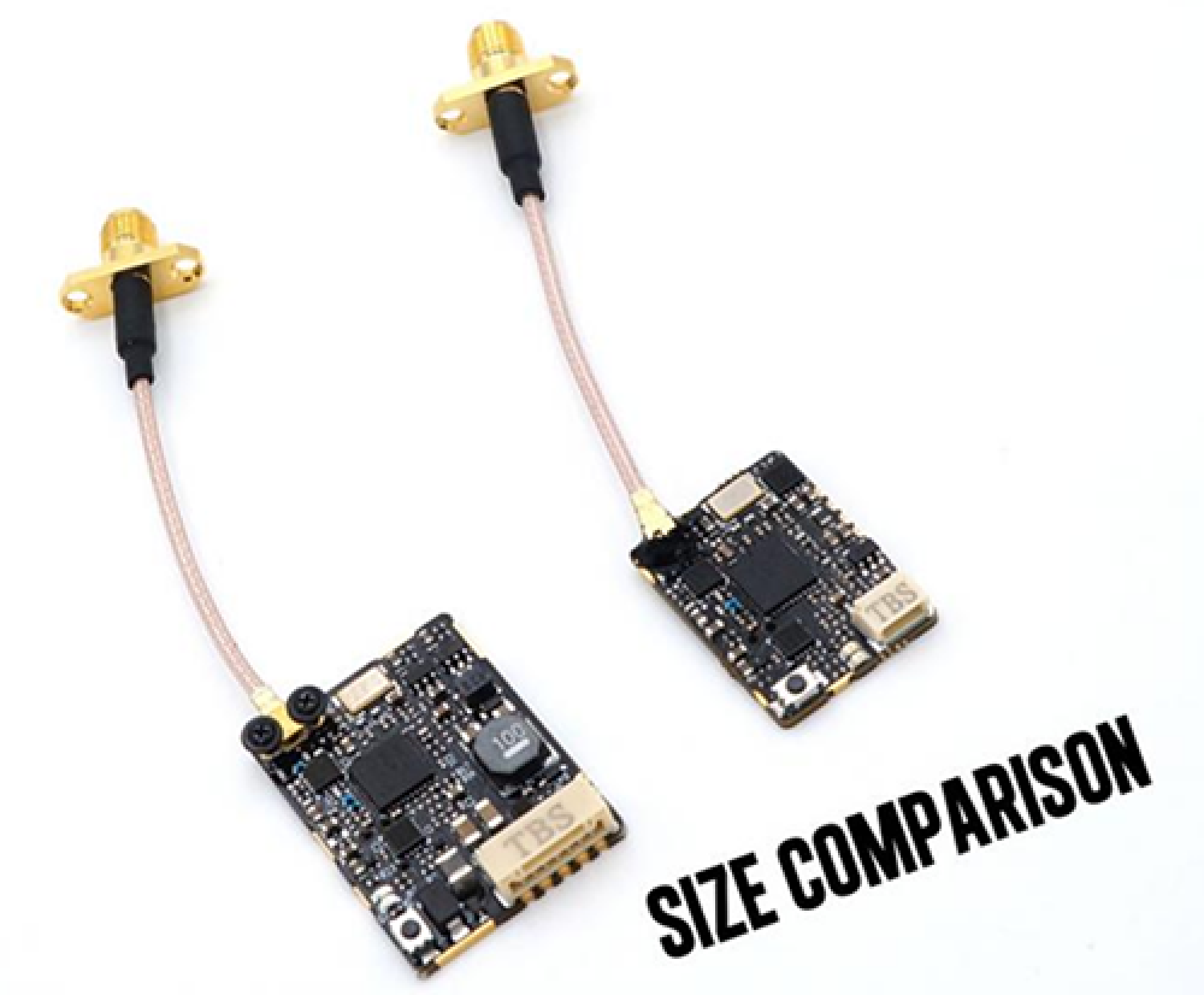

Weight: 5g (with SMA, without antenna)

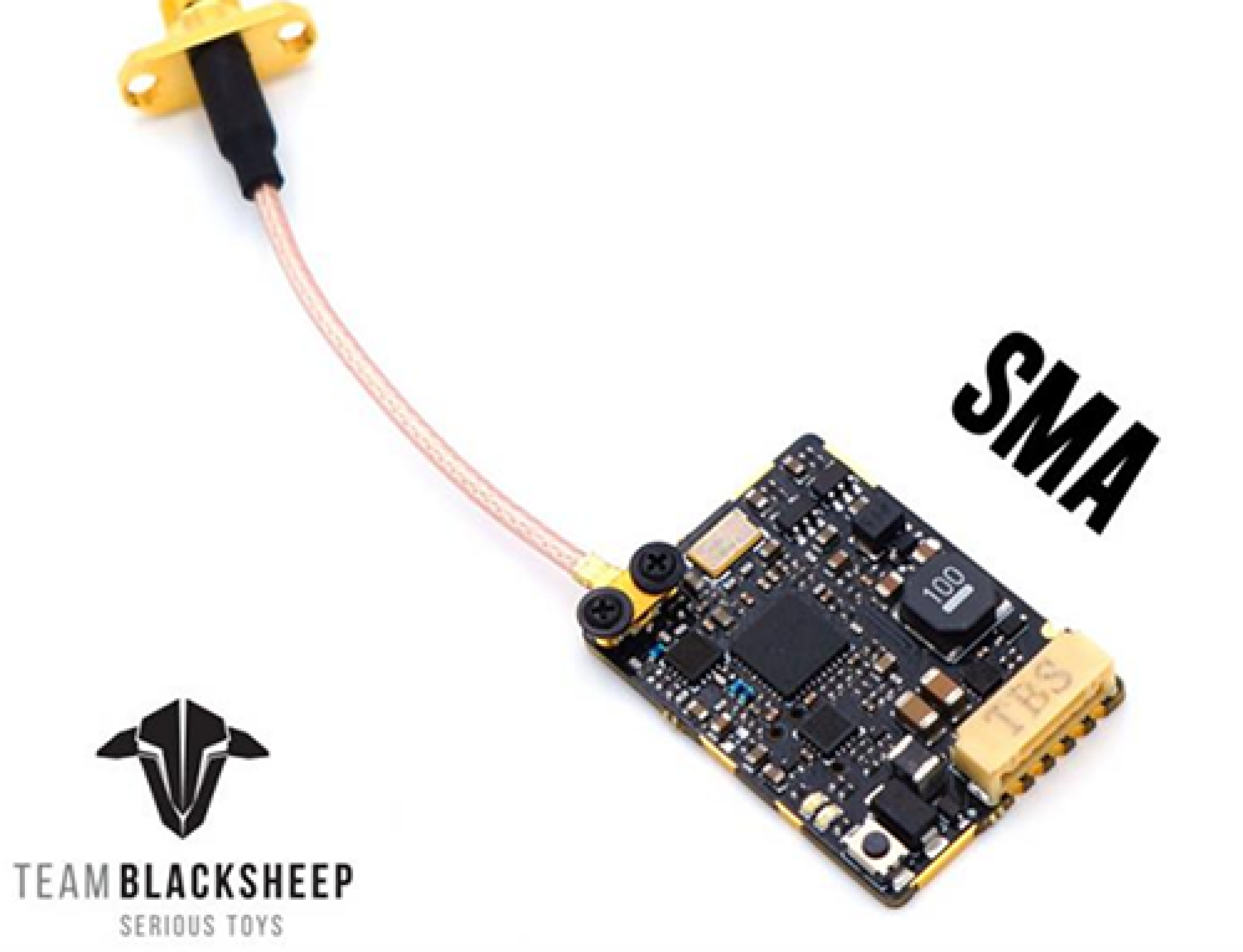

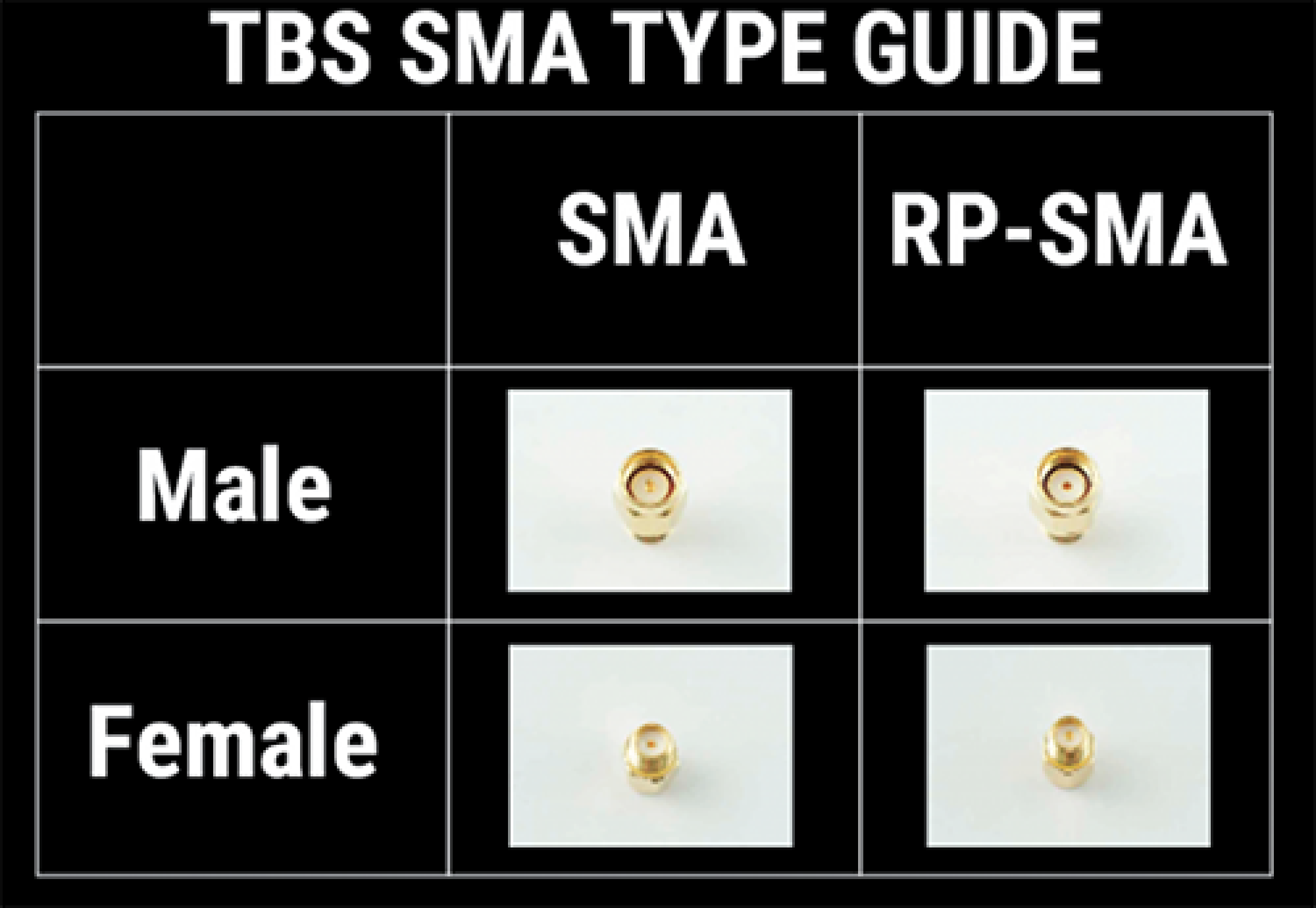

Antenna Connector: SMA Female Socket with screw mounting holes
Video Format: NTSC/PAL
Output Power: 13dBm (25mW), 23dBm (200mW), 27dBm (500mW), 29dBm (800mW*)

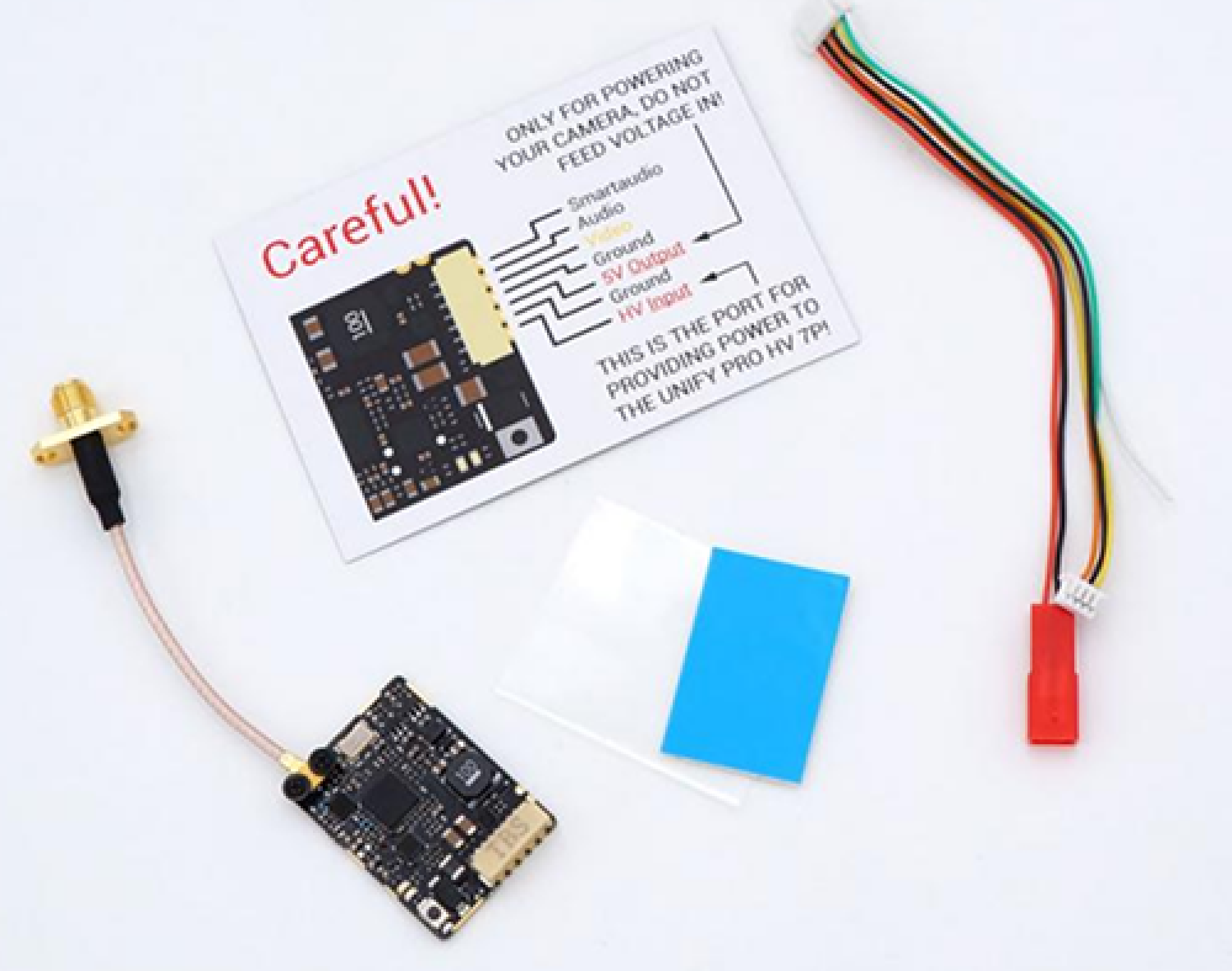

INCLUDED
TBS UNIFY PRO 5G8 HV Video transmitter
Video Transmitter / Camera / Power cable
TBS UNIFY Pro Manual
* HAM license is required for operation on HAM channels, and HAM power levels! The VTx ships with only legal channels enabled, please consult the manual on unlocking procedure.
