1 x Frame TBS Source One v0.3 5 inch

$77699

Sin Stock
Consultar

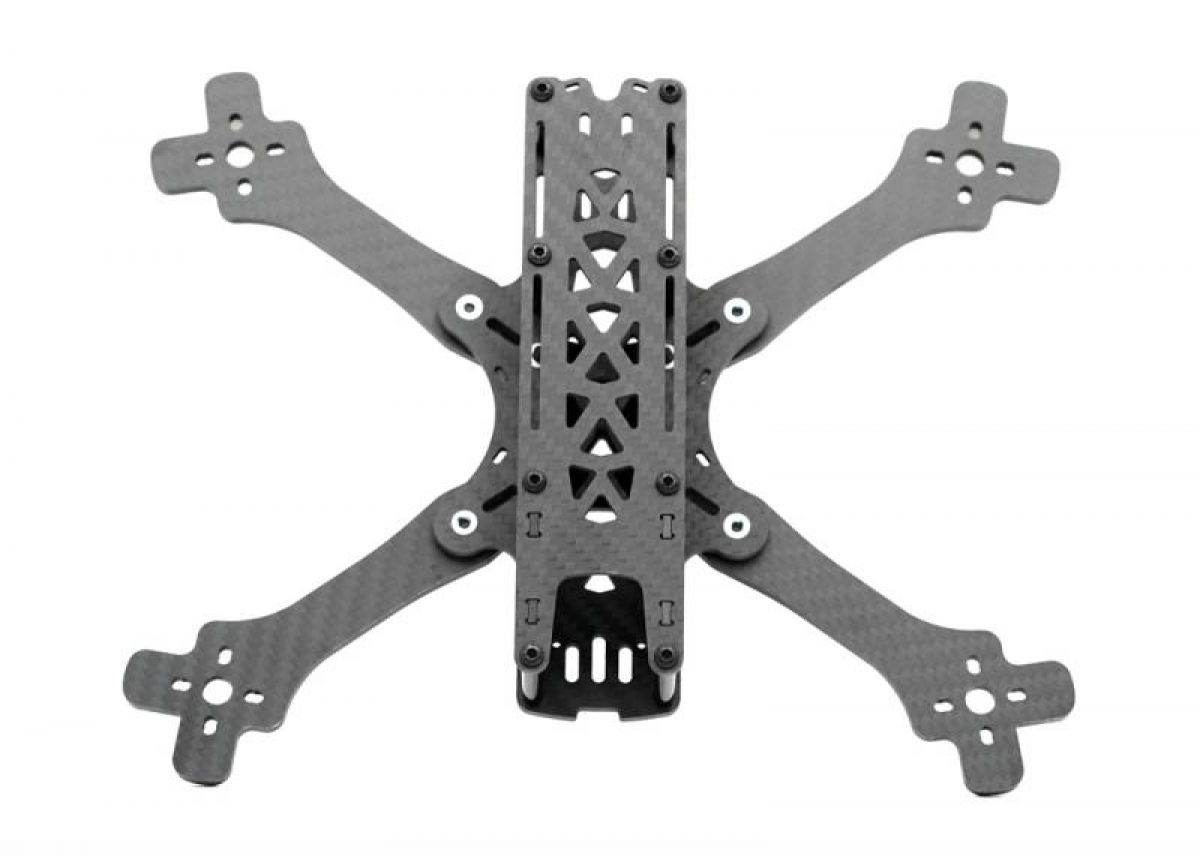

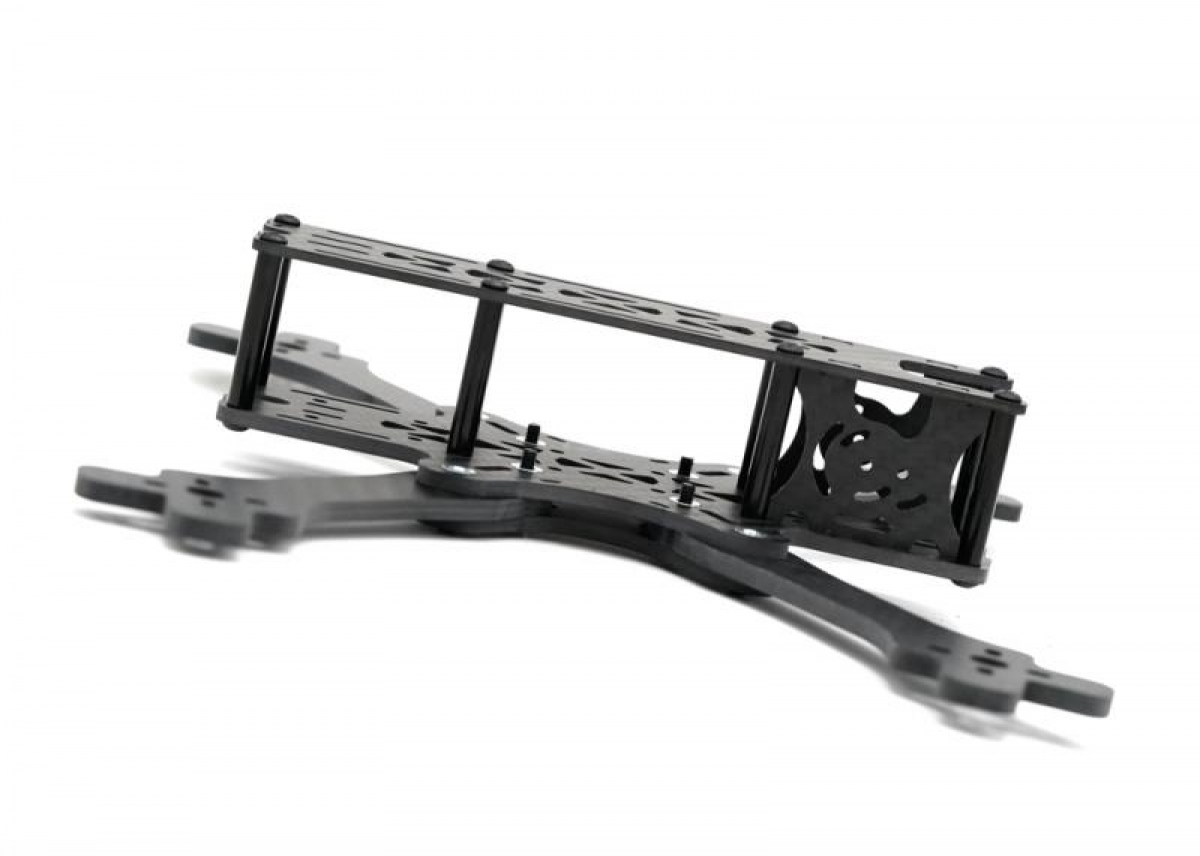

 The SOURCE ONE is a wide-stance X configuration frame, popular for freestyle or free-range acrobatic flying. It is built to withstand harsh crashes and abuse. It fits and protects all the classic FPV components and is optimized for light weight. The SOURCE ONE is a perfect everyday workhorse for casual FPV flying and competitive freestyle.
About the project

The SOURCE ONE project is a first of its kind collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers, and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them compete in an increasingly predatory marketplace.

The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation and wide availability of compatible parts and accessories, without violating other people’s intellectual property.
Get involved!

    Project discussion: https://discordapp.com/invite/ZJGkHwF
    Project files: https://github.com/tbs-trappy/source_one
    Interactive Manual (work in progress)
    3D Printed files on Thingiverse: https://www.thingiverse.com/tag:sourceone
    3D Printed Parts (STL) also avaialble on github!

Package contains:

    1x Frame (Top, Bottom. Brace and 2x Camera plate, 4x Arms)
    1x Screw & Standoff set

Technical specifications:

    Wheelbase 5": 226mm
    Wheelbase 6": 263mm (not sold)
    Wheelbase 7": 300mm
    Top Plate: 2mm
    Bottom Plate: 3mm
    Standoff height: 30mm
    Arm thickness 5": 4mm
    Arm thickness 6": 4mm (not sold)
    Arm thickness 7": 6mm
    Stack Mounting: 30.5 × 30.5mm & 20 x 20
    Weight 5": 145.1g
