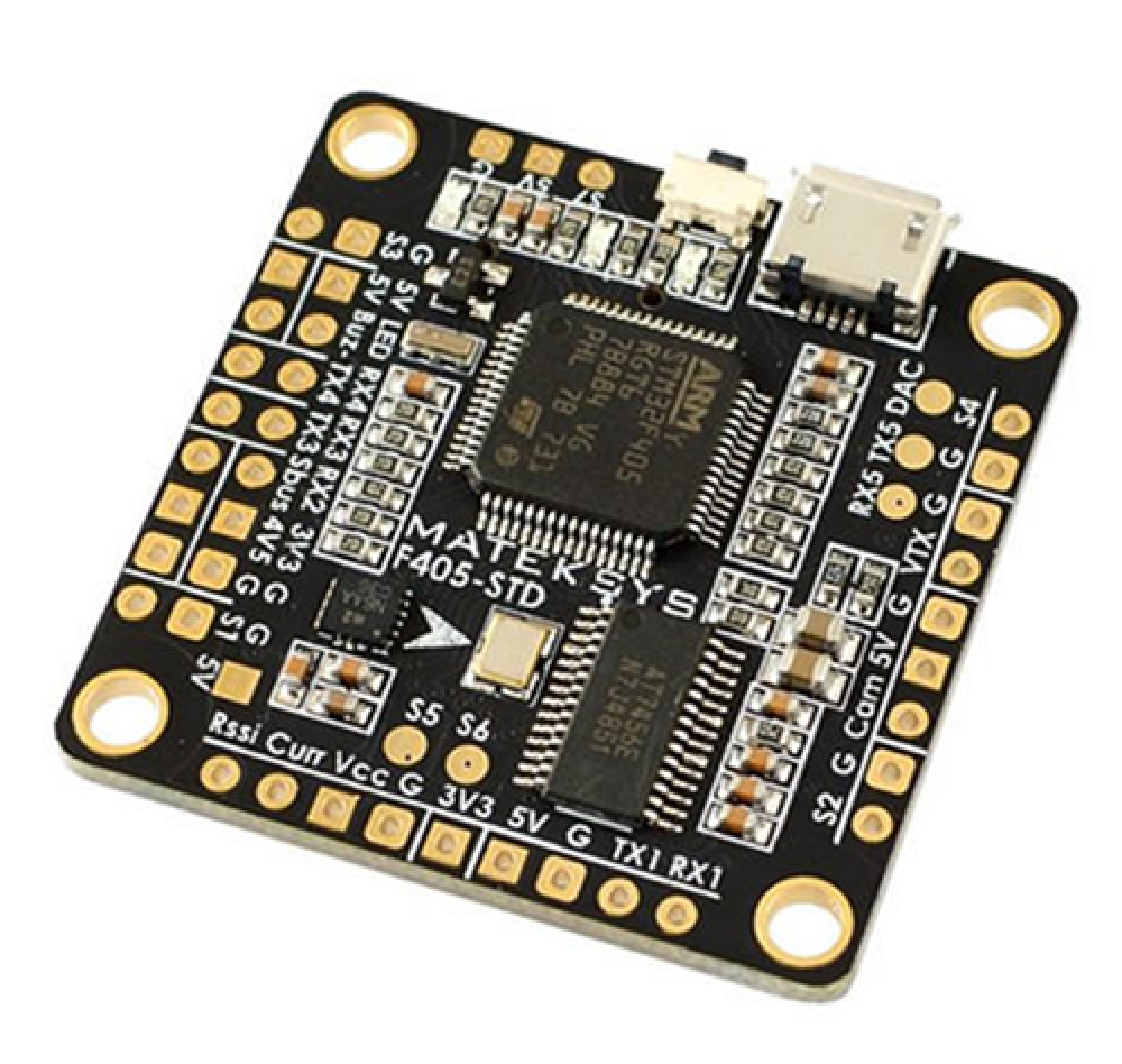

FC F4 Matek F405-STD

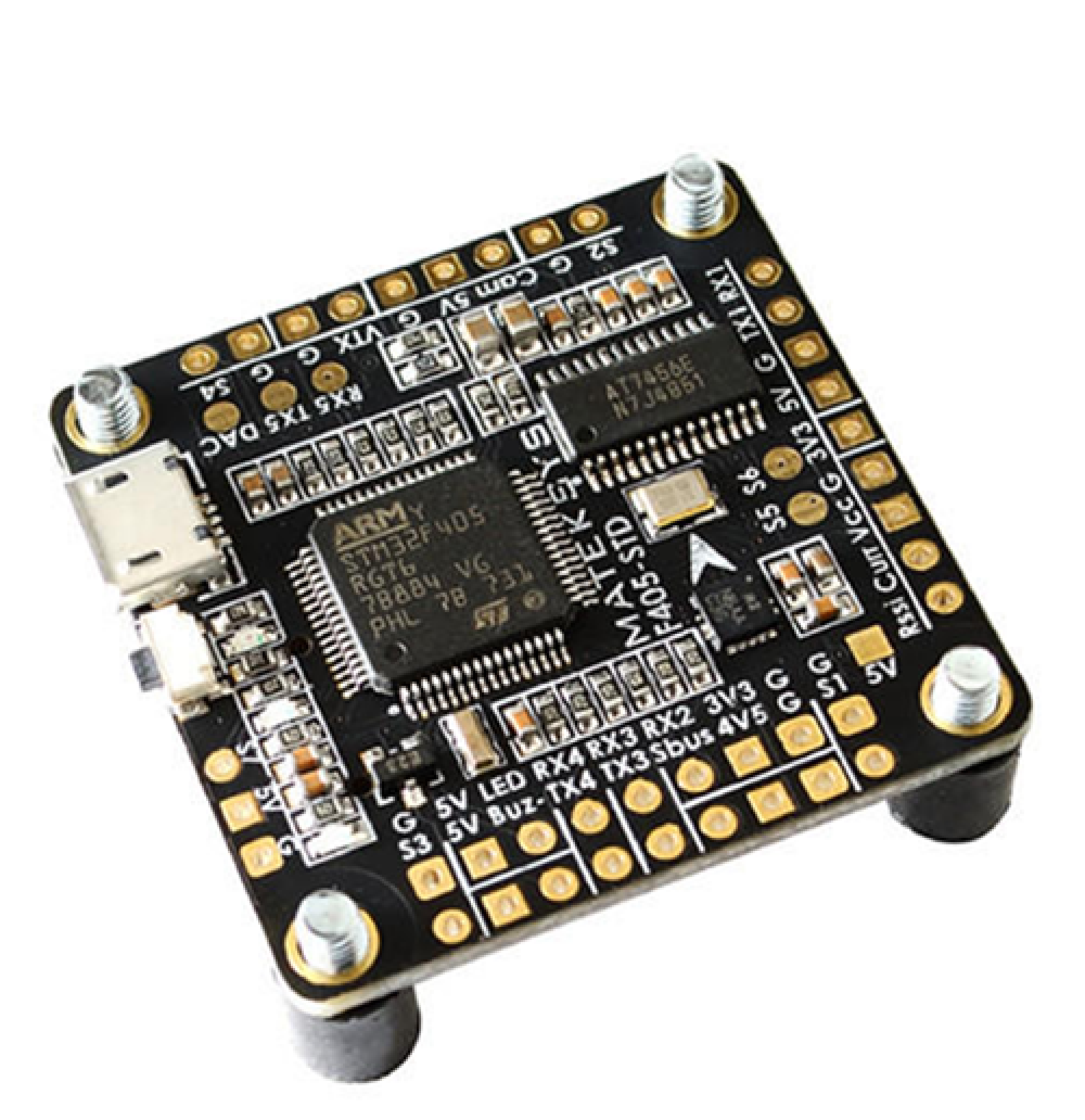

FC F4 Matek F405-STD con tornillos de gomitas antivibracion

$73999 $101749

Sin Stock
Consultar

Matek Systems F405-STD BetaFlight STM32F405 Flight Controller Built-in Inverter for SBUS Input

Specification (user manual):
Brand: Matek Systems
Item name: Flight Control Board
Size: 36x36mm
Mounting hole: 30.5mm
Weight: 7g

MCU: 168MHz STM32F405RGT6

IMU: 32K ICM20602 gyro/accelerometer (SPI)

Baro: BMP280 (I2C)

OSD: BetaFlight OSD w/ AT7456E chip

Blackbox: MicroSD card slot (SD/SDHC)

VCP, UART1, UART2, UART3, UART4, UART5

Built in inverter for SBUS input (UART2-RX)

PPM/UART Shared: UART2-RX

SoftSerial on TX2, S5 or S6 optional

Camera control on S6 or DAC optional

Smartaudio & Tramp VTX protocol supported

Battery Voltage Sensor: 1:10

Current Sensor: No (FCHUB-6S, FCHUB-VTX, FCHUB-W option)

BEC 5V: No (FCHUB-6S, FCHUB-VTX, FCHUB-W option)

LDO 3.3V: Max.300mA

I2C1 SDA & SCL: Yes

WS2812 Led Strip : Yes

Beeper : Yes

RSSI: Yes

Features:

3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)

6x PWM / DShot outputs without conflict

2x 2812LED outputs option

5x UARTs

1x Group of 5V/G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND

4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)

1x pair I2C1 pads

1x Side-press button for BOOT(DFU) mode

1x 16pin bottom mounted FFC Slot for FCHUB-6S, FCHUB-VTX or FCHUB-W connection

Package included:
1x flight control board
2x 0.5mm*16Pin 5cm Flexible Flat Cable
4x M3 Anti-vibration Standoffs
